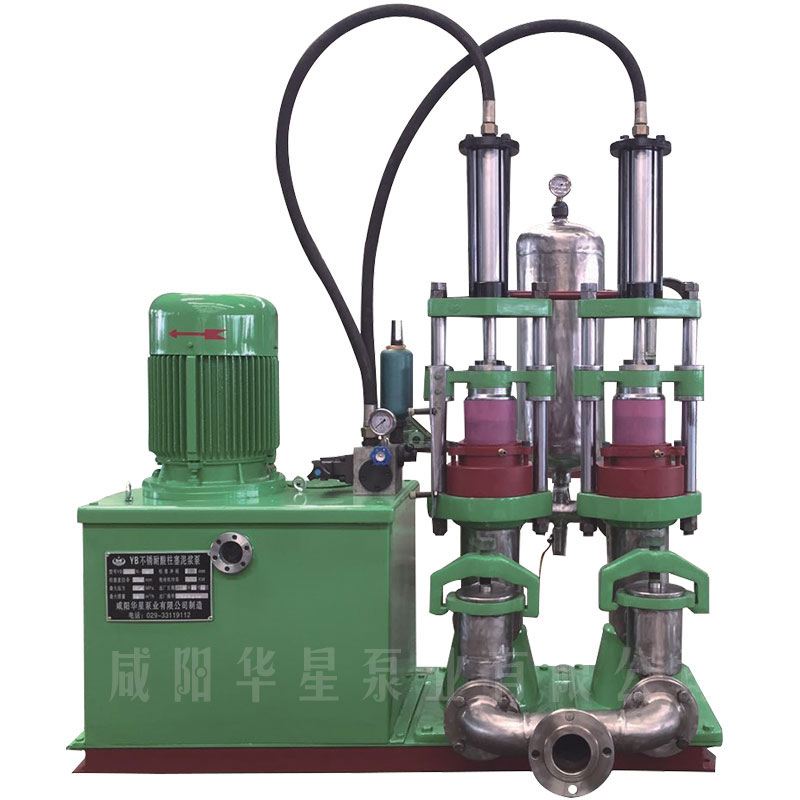

YB stainless steel acid resistant ceramic plunger mud pump
Advantages of hydraulic plunger mud pump
1. Wear resistance: The plunger is made of alumina ceramic fired and finely ground, with a hardness of HLC8.5 or higher and a surface roughness of 0.4um. There is no shear motion between the plunger and the conveyed material Suitable for conveying materials containing sand and solid particles.
2. Strong self-priming ability: plunger type vacuum pumping method, self-priming ability of 4-8 meters (material density determines suction range change) .
3. Adjustable constant pressure automatic variable: The working pressure of the plunger mud pump can be adjusted within the range of 0-20 kilograms. The adjusted pressure will not change due to changes in the output flow rate of the pump, and will maintain the set pressure unchanged. Even if the outlet of the running pump is closed, the pressure will not change. (The change cannot exceed the large flow rate of the pump, and the flow rate can be zero) .
4. High pressure: The regular model has a high pressure of 20 kilograms When the pressure is ≥ 5 kg and the flow rate is the same, the motor power of the plunger slurry pump is 1 to 2 models lower than other types of pumps.
5. Easy to operate: Pressure adjustment only requires tightening or loosening the pressure regulating valve. After adjusting the pressure, lock it and there is no need to adjust it again in the future.
6. Low operating cost: The vulnerable parts of the pump are the valve plate and plunger seal Replace ceramic mud every 3-6 months and municipal sludge every 6-12 months .
7. Long service life: The service life is at least 15 years.
8. Customized production: Based on the actual working conditions of each user, flexibly configure and customize products that meet their production needs.
|
YB series stainless steel ceramic plunger mud pump parameter table |
|||||||
|
model |
Rated current m³ /H |
Pressure Range MPA |
Rated pressure MPA |
stroke MM |
Equipped with motor KW |
External dimensions Length * Width * Height（ M ） |
Inlet/outlet flange |
|
YB85N-2.8 |
2.8 |
0-2.5 |
2 |
220 |
4 |
1.2*0.85*1.5 |
DN50/DN40 |
|
YB120N-7.1 |
7.1 |
0-2.5 |
2 |
250 |
5.5/7.5 |
1.6*1*1.6 |
DN80/DN65 |
|
YB140N-10 |
10 |
0-2.5 |
2 |
250 |
7.5/11 |
1.6*1*1.6 |
DN80/DN65 |
|
YB200N-19 |
19 |
0-2.5 |
2 |
250 |
18.5 |
1.7*1.2*1.9 |
DN100/DN80 |
|
YB250N-30 |
30 |
0-2 |
1.8 |
250 |
18.5/22 |
1.9*1.3*2.2 |
DN125/DN100 |
|
YB300N-40 |
40 |
0-2 |
1.8 |
250 |
30 |
2.0*1.3*2.2 |
DN125/DN125 |
The above are basic models, and customized products can be made for special needs.
Introduction to YB stainless steel ceramic plunger slurry pump
This pump is designed for transporting acidic materials.
Due to its ability to resist intergranular corrosion, all parts that come into contact with acidic media are made of acid resistant stainless steel materials. Adopting acid resistant plunger and acid resistant seal, it can transport acidic materials, and can also be made of other stainless steel materials without causing secondary pollution to the transported materials.
Uses: conveying and high-pressure filtration of kaolin, activated clay and acid containing materials, spray drying and high-pressure filtration of high-voltage electric porcelain raw materials, high-pressure conveying and filtration of food raw materials.
Customized production can fully meet your requirements
CUSTOMIZATION PROCESS
1. Online consultation with customer service to have preliminary communication with you, and arrange for engineers to have detailed one-on-one communication with you
Arrange engineers to create a plan based on your working conditions and provide a quotation
Both parties determine the plan and price, and sign the contract
4. Arrange production and deliver on time
5. Arrange guidance for installation and debugging of equipment
6. Post sales service
