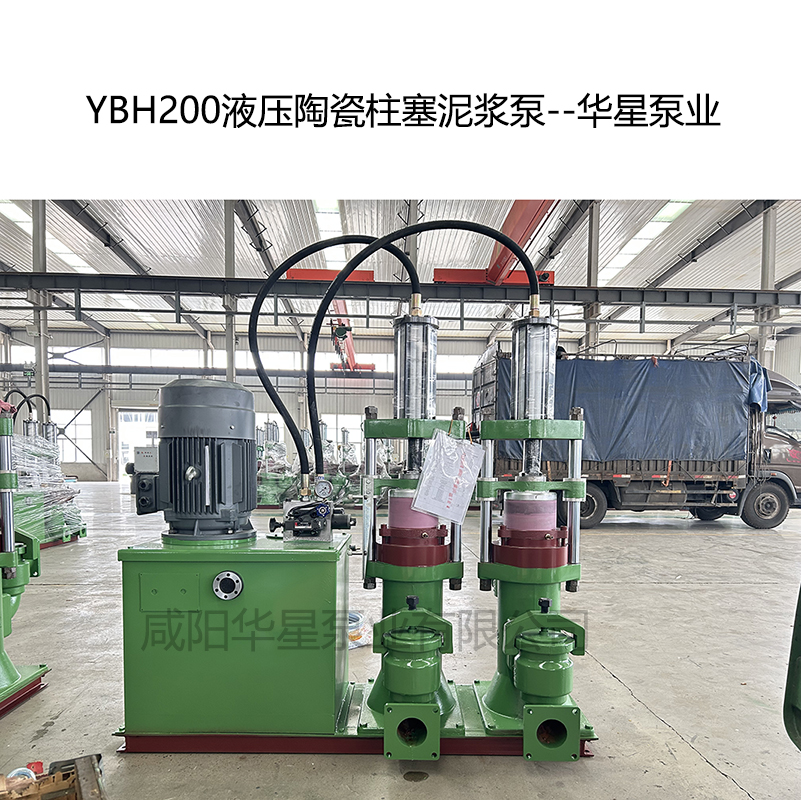

YB200D-24 ceramic plunger pump is a hydraulic driven dual cylinder double acting displacement pump produced by Xianyang Huaxing Pump Industry Co., Ltd.

　　Here is a detailed introduction:

　　Basic parameters: rated flow rate of 24 cubic meters per hour, pressure range of 0-1.5 MPa, rated pressure of 1.2 MPa, equipped with a motor power of 11/15 KW, and external dimensions of 1.7 × 1.3 × 1.9 meters.

　　Structural features: The plunger is made of alpha alumina ceramic, with a hardness of HLC8.5 or above, a surface roughness of 0.4um, and strong wear and corrosion resistance. By driving the reciprocating motion of the plunger through a hydraulic system, it has the advantages of high pressure, fast and accurate pressure adjustment, and smooth operation.

　　Product features: Wear resistant, plunger and conveyed materials have no shear motion, suitable for conveying materials containing sand and solid particles; Strong self-priming ability, using plunger vacuum pumping method, self-priming capacity of 4-8 meters; It has adjustable constant pressure automatic variable function, and the working pressure can be adjusted freely within the range of 0-1.5MPa. The adjusted pressure will not change due to changes in the output flow rate of the pump.

　　Application field: It can be used for spray drying of ceramic slurry, high-pressure spray combustion of coal water slurry, clean (dirty) water, long-distance transportation of various suspended liquids, slurries, sand containing liquids, as well as feeding of filter presses.
