YB series basic model plunger pump functional characteristics and main parameters

The YB series hydraulic ceramic plunger mud pump is a hydraulic driven dual cylinder double acting ceramic plunger mud pump. This pump has the characteristics of smooth operation, reliable work, low noise, high pressure, small pressure fluctuation, small volume, light weight, easy installation and maintenance operation, and long service life. It is mainly used to supply slurry for various types of spray drying towers and filter presses, and can also be used for long-distance transportation of slurry, clean (dirty) water, coal slurry or other suspensions.

The YB series hydraulic ceramic plunger mud pump currently has four major series and nearly twenty specifications, with flow rates ranging from 0.3M/h to 45M/h. The maximum pressure of the atmospheric pump can reach 2.5MPa; Rated pressure 2.0MPa; The maximum pressure of the high-pressure pump can reach 3.0MPa, with a rated pressure of 2.5MPa; the pressure of the low-pressure pump is 1.5MPa; Its flow rate is 10-20% higher than the rated flow rate of similar pumps.

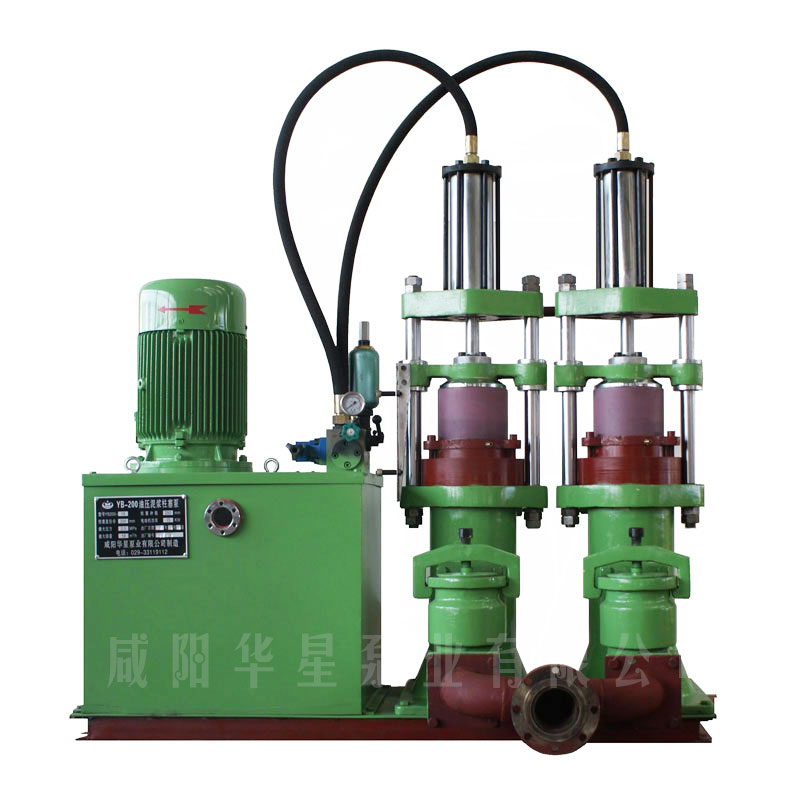

The YB200 pump is equipped with a filter press, which can replace 3-4 old-fashioned diaphragm pumps. It not only reduces the footprint, but also reduces maintenance costs and electricity consumption for users. It is the preferred product for users' technological upgrades.

　　Advantages of hydraulic plunger mud pump

　　1. Wear resistance: The plunger is made of alumina ceramic fired and finely ground, with a hardness of HLC8.5 or higher and a surface roughness of 0.4um. There is no shear motion between the plunger and the conveyed material Suitable for conveying materials containing sand and solid particles.

　　2. Strong self-priming ability: plunger type vacuum pumping method, self-priming ability of 4-8 meters (material density determines suction range change).

　　3. Adjustable constant pressure automatic variable: The working pressure of the plunger mud pump can be adjusted within the range of 0-20 kilograms. The adjusted pressure will not change due to changes in the output flow rate of the pump, and will maintain the set pressure unchanged. Even if the outlet of the running pump is closed, the pressure will not change. (The change cannot exceed the large flow rate of the pump, and the flow rate can be zero).

　　4. High pressure: The regular model has a high pressure of 20 kilograms When the pressure is ≥ 5 kg and the flow rate is the same, the motor power of the plunger slurry pump is 1 to 2 models lower than other types of pumps.

　　5. Easy to operate: Pressure adjustment only requires tightening or loosening the pressure regulating valve. After adjusting the pressure, lock it and there is no need to adjust it again in the future.

　　6. Low operating cost: The vulnerable parts of the pump are the valve plate and plunger seal Replace ceramic mud every 3-6 months and municipal sludge every 6-12 months.

　　7. Long service life: The service life is at least 15 years.

　　8. Customized production: Based on the actual working conditions of each user, flexibly configure and customize products that meet their production needs.

The above are basic models, and customized products can be made for special needs.

　　Introduction to YB Ceramic Piston Mud Pump

　　The YB series ceramic plunger pump is a hydraulic driven double bar double action displacement pump. Using alpha alumina as the plunger, the pump has high wear resistance and corrosion resistance. It has the characteristics of stable and reliable operation, high output pressure and metering, small pressure fluctuations, low noise and acid and alkali resistance, easy operation and maintenance, and long service life. When used in conjunction with a filter press, it is an ideal product for various types of solid-liquid separation. Compared to centrifugal pumps, screw pumps, and rotary pumps, this pump has the following advantages: low pressure and power, low wear and tear, long service life, adjustable temperature control function, and maintenance costs only one tenth of centrifugal pumps, screw pumps, and rotary pumps, reducing usage costs and electricity consumption for users.

　　The pump can automatically control the output flow rate while keeping the set pressure unchanged. A pressure value is set according to the actual working conditions. When the pressure rises to the set value, the pressure stops rising. At this time, the pump's flow rate can automatically change the operating speed between zero and high flow rate according to actual needs while maintaining the set pressure unchanged. Driven by hydraulic pressure, high pressure, quick pressure adjustment, and smooth operation. The use of alpha alumina ceramic plunger has low wear, easy operation, installation and maintenance, low cost of use, and long service life.

　　Usage: It is used for spray drying of ceramic slurry, high-pressure spray combustion of coal water slurry, long distance transportation of clean (dirty) water, various suspended liquids, slurry, sand containing liquid, and also for feeding of filter press.

Customized production can fully meet your requirements
