YB250 Hydraulic Ceramic Piston Pump Parameters
创始人
2025-09-10 08:35:38
0次

　　YB250 hydraulic ceramic plunger pump has multiple models, and the parameters of the same model produced by different manufacturers may also vary. Taking the products of Xianyang Huaxing Pump Industry Co., Ltd. as an example, some of its model parameters are as follows:

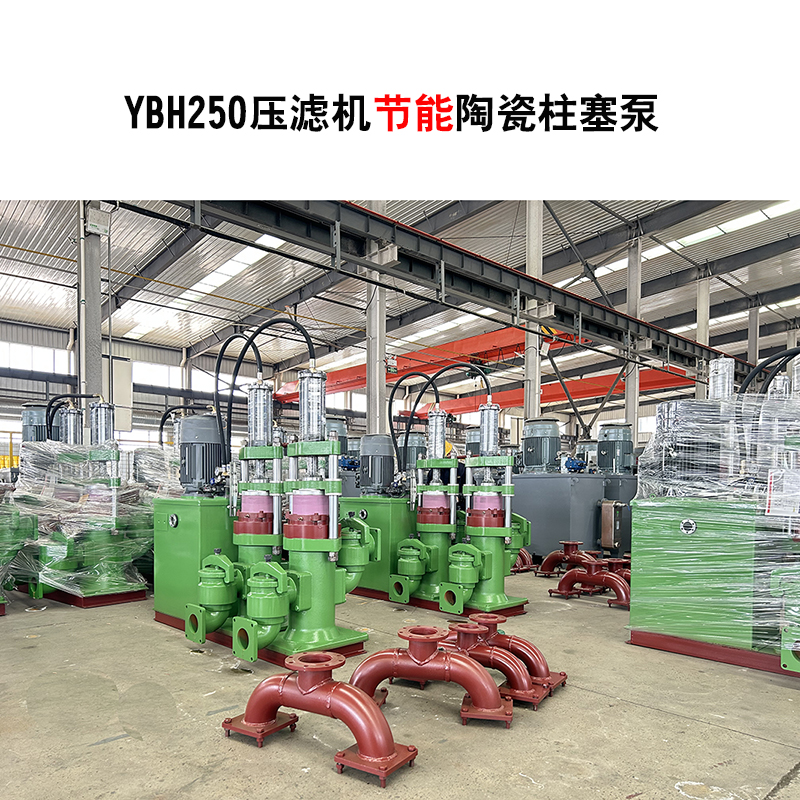

YBH250-30节能型压滤机陶瓷柱塞泵-02


modelRated flow rate (cubic meter/hour)Rated pressure (MPa)Equipped with motor power (KW)Dimensions (meters)Diameter of suction/discharge pipe (mm)
YB250D-35351.015/18.51.95×1.6×2.2φ133/φ108
YB250-25251.8221.95×1.6×2.2φ133/φ108
YB250G-25252.5301.95×1.6×2.2φ133/φ108
YBH250-30301.811/151.95×1.6×2.2φ133/φ108
YB250 Hydraulic Ceramic Piston Pump Parameters
