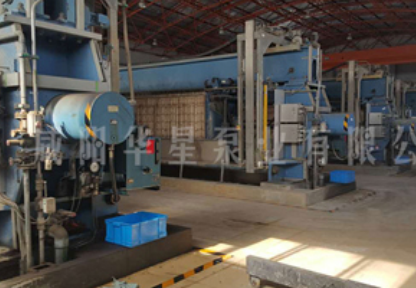

This project is for municipal sludge treatment, with a solid content of about 10%. The filter press used is a German 1000 square meter fully automatic filter press, and the feed pump is a German mechanical high-pressure diaphragm pump. Each filter press is equipped with a diaphragm pump, with a flow rate of 30 cubic meters per hour, a high pressure of 16 kilograms, a working pressure of 14 kilograms, a motor power of 22 kilowatts, and a feeding and unloading time of 3. Between hours (due to changes in sludge solids content), the moisture content of the sludge cake is 35%.

Usage of diaphragm pump:

The diaphragm needs to be replaced every two months for about 450 yuan each, the piston needs to be replaced every two months for about 300 yuan each, and the piston cylinder liner needs to be replaced every six months at a unit price of 1000 yuan. The total cost for maintenance this year is about 11000 yuan.

Usage after replacing the plunger pump:

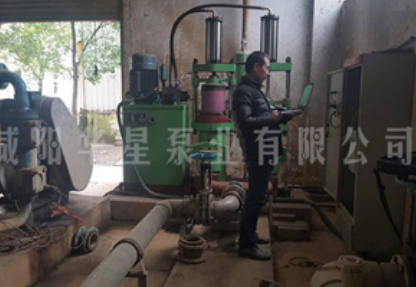

Replace the plunger pump model with YB300BP-40 filter press dedicated pump, with a flow rate of 40 cubic meters per hour, a high pressure of 18 kilograms, a working pressure of 14 kilograms, a motor power of 22 kilowatts, and a feeding and unloading time of 2.5-3 hours (due to changes in sludge solid content). The moisture content of the sludge cake is 35%. The replacement of plunger seals for accessories is done every 6-8 months, with a total of 8 pieces per set. Each set costs 110 yuan, and the valve plates are replaced every 6 months, with 4 pieces per set. The unit price is 120 yuan, and the annual comprehensive usage cost is 2240 yuan. 5-year comprehensive cost, within 4000 yuan per year.

Comprehensive evaluation

Compared to high-pressure diaphragm pumps, plunger pumps have the same motor power, with an average filtration time shortened by 40 minutes per filtration and an annual reduction of 8760 yuan in accessory usage.
