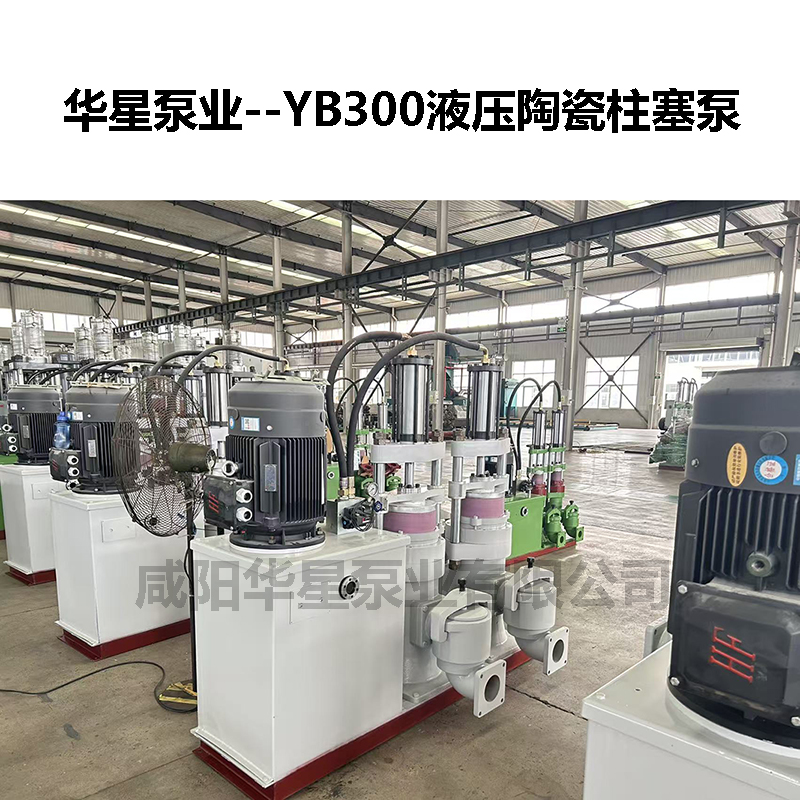

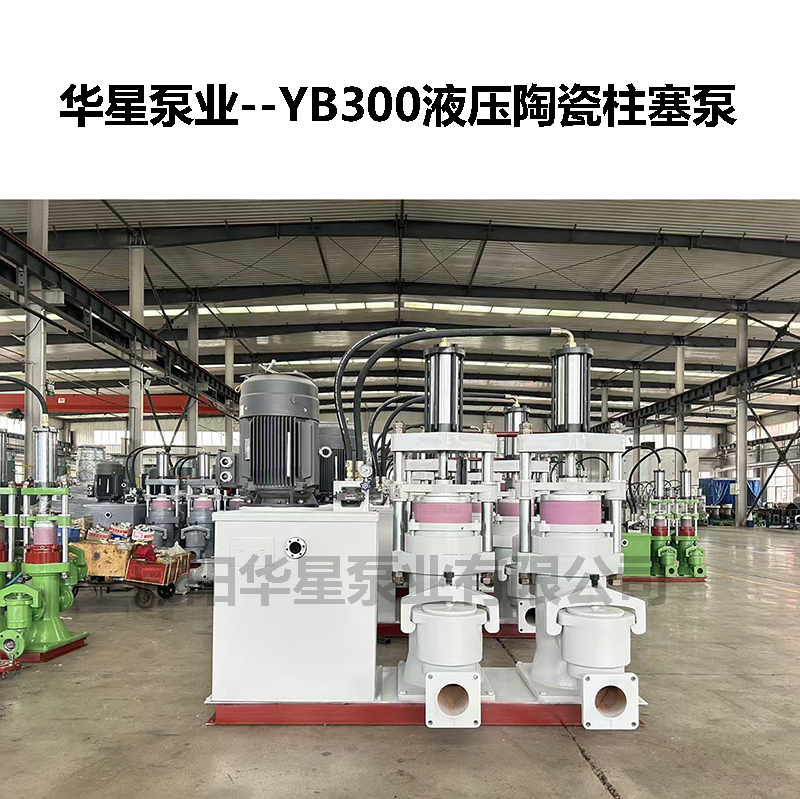

YB ceramic plunger pump is a hydraulic driven mud pump produced by Xianyang Huaxing Pump Industry Co., Ltd.

Here is a detailed introduction:

Working principle: The motor drives the gear oil pump, which converts low-pressure oil into high-pressure oil. The high-pressure oil alternately enters two hydraulic cylinders through the reversing valve, driving the hydraulic cylinder piston and then driving the ceramic plunger to perform reciprocating motion. During the reciprocating motion of the plunger, the slurry is sucked and discharged through the inlet and outlet valves of the working cylinder, thereby achieving the transportation of fluids such as slurry.

Product Features

Simple structure: Using hydraulic drive, the structure is relatively simple, running smoothly, with high reliability for continuous operation, and easy maintenance.

Good pressure performance: high working pressure, small pressure fluctuations, wide pressure regulation range, and low noise. The pressure of the atmospheric pump can reach 2.5Mpa, with a rated pressure of 2.0Mpa; The pressure of the high-pressure pump can reach 4.0Mpa, with a rated pressure of 3.5Mpa.

Strong conveying capacity: capable of conveying high concentration suspended slurry, able to withstand materials containing sand and solid particles, and can pass through large particles with solid particles smaller than 2mm and a small proportion.

Significant energy-saving effect: Variable displacement pumps have a constant flow rate in the low pressure range. When the pressure rises to the set value, the flow rate decreases with the increase of pressure, and the motor power decreases accordingly. Compared with quantitative pumps, they save nearly 40% -50% in energy.

High quality mud material: Compared with diaphragm pumps, when used for slurry supply in filter presses, the quality of the mud material obtained is high, the filter pressing time is short, and the power consumption is reduced by 30%.

Product specifications: YB series hydraulic ceramic plunger mud pump conventional pump currently has more than ten specifications in nine series including YB85, YB120, YB140, YB200, YB250, YB300, YB350, YB400, YB500, etc. The flow rate can range from 1.5m ³/h to 200m ³/h.

Application areas: Widely used in industries such as chemical, metallurgical, petroleum, printing and dyeing, ceramics, food, pharmaceuticals, building materials, environmental protection, coal, metal and non-metal minerals. It can be used for spray drying of ceramic slurry, high-pressure spray combustion of coal water slurry, long distance transportation of clean (dirty) water, various suspended liquids, slurry, and sand containing liquids, as well as feeding of filter press.
