The energy-saving pump for sand washing special filter press is a filter press feed pump designed for the treatment of sand washing wastewater. It has the characteristics of energy saving and wear resistance. The following is a related introduction:

　　Representative products and parameters: The YBH series energy-saving pump for filter presses from Xianyang Huaxing Pump Industry Co., Ltd. is widely used in the sand washing industry. For example, the YBH200 sludge plunger pump has a flow rate of 19 cubic meters per hour, a rated pressure of 0-20 kilograms that can be adjusted freely, a stroke of 250mm, and is equipped with a 7.5KW motor. There is also the YBH300-40 model with a flow rate of 40 cubic meters per hour, which feeds a 250 square meter filter press at a pressure of 8 kilograms and is equipped with a 15KW motor.

　　Product Features

　　Energy saving and efficient: For example, the Huaxing YBH type energy-saving pump for filter presses is a pressure sensitive variable pump that can automatically adjust the flow rate and pressure according to the working status of the filter press. It basically matches the optimal filtration curve of the filter press and saves more than 60% of energy compared to ordinary pumps.

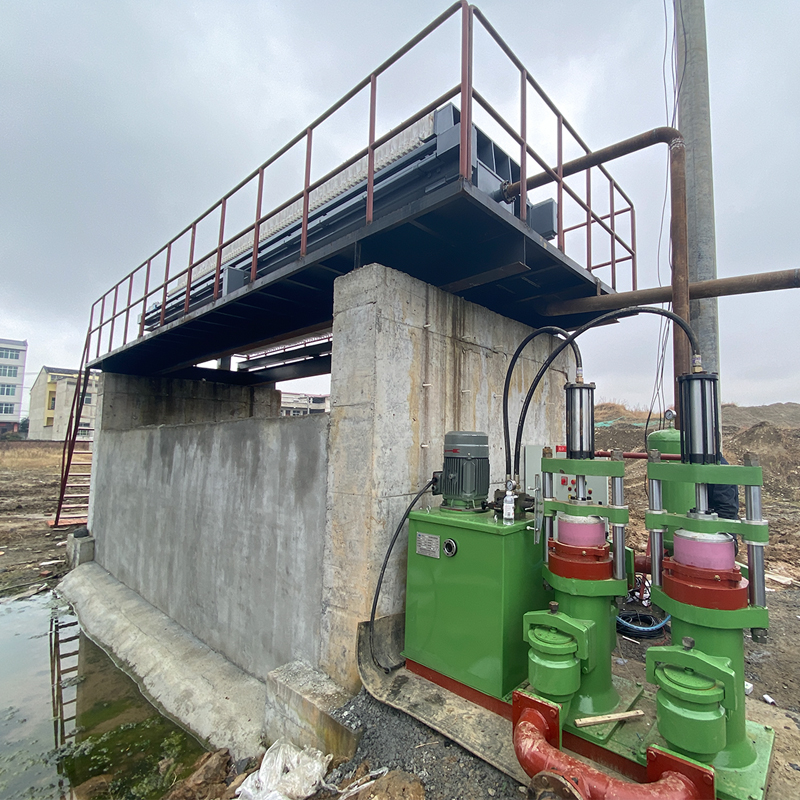

On site use of energy-saving pump for sand washing special filter press

　　Wear resistance: The plunger of Huaxing Pump Industry's YBH series pump is made of alumina ceramic fired and finely ground, with a hardness of HLC8.5 or above and a surface roughness of 0.4um. It is suitable for conveying materials containing sand and solid particles, and has a service life of over 15 years.

　　Low maintenance cost: Using a ceramic plunger pump to feed the filter press, the annual maintenance cost is less than a few hundred yuan, and only the valve plate and rubber seal need to be replaced each time.

On site use of energy-saving pump for sand washing special filter press

　　Pressure adjustable: The working pressure can be adjusted freely within the range of 0-20 kilograms, which can meet the working needs of different filter presses in the treatment process of sand washing wastewater. Moreover, the feeding pressure is increased by more than 30% compared to the existing slurry pump feeding speed, greatly improving work efficiency.

　　Other brand products: Xianyang Huaxing Pump Industry Co., Ltd.'s energy-saving pump for filter presses also has strong competitiveness. Its products are 30-70% more energy-efficient than ordinary screw pumps and over 70% more energy-efficient than ordinary slurry pumps. It comes with an electronic control PLC system and has functions such as motor current overload protection, automatic oil temperature adjustment, and pressure loss alarm, which can predict some basic faults during pump operation and reduce the failure rate.
