Installation of hydraulic ceramic plunger pump
创始人
2025-08-08 10:58:53
0次
Place the pump on the foundation, calibrate it horizontally, and fix it with anchor screws (or not). To facilitate the replacement of hydraulic oil and flushing of mud pipelines, the foundation of the pump should be 10 centimeters above the ground, and there should be drainage ditches around the foundation.

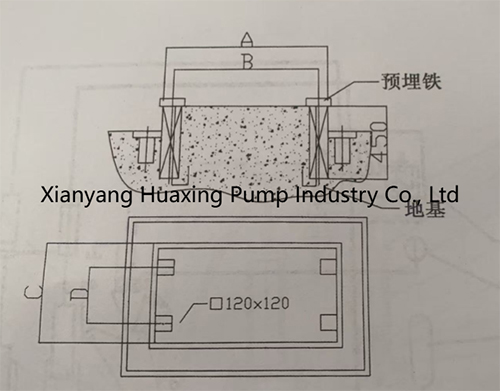

YB series ceramic plunger pump installation foundation diagram, specific dimensions see:
Foundation installation dimensions:
| Pump specifications | A size | B size | C size | D size | |||||||
| 2800 | 2400 | 1130 | 710 | |||||||
| YB300 plunger pump | 2100 | 2010 | 720 | 520 | |||||||
| YB250 plunger pump | 2100 | 1880 | 720 | 460 | |||||||
| YB200 plunger pump | 1950 | 1650 | 710 | 410 | |||||||
| YB140 plunger pump | 1800 | 1500 | 680 | 370 | |||||||
| YB85 plunger pump | 1500 | 1150 | 580 | 350 |
