Huaxing Hydraulic Mud Pump is a series of mud pump products produced by Xianyang Huaxing Pump Industry Co., Ltd., with various models and characteristics, widely used in multiple industries. Here is a specific introduction:

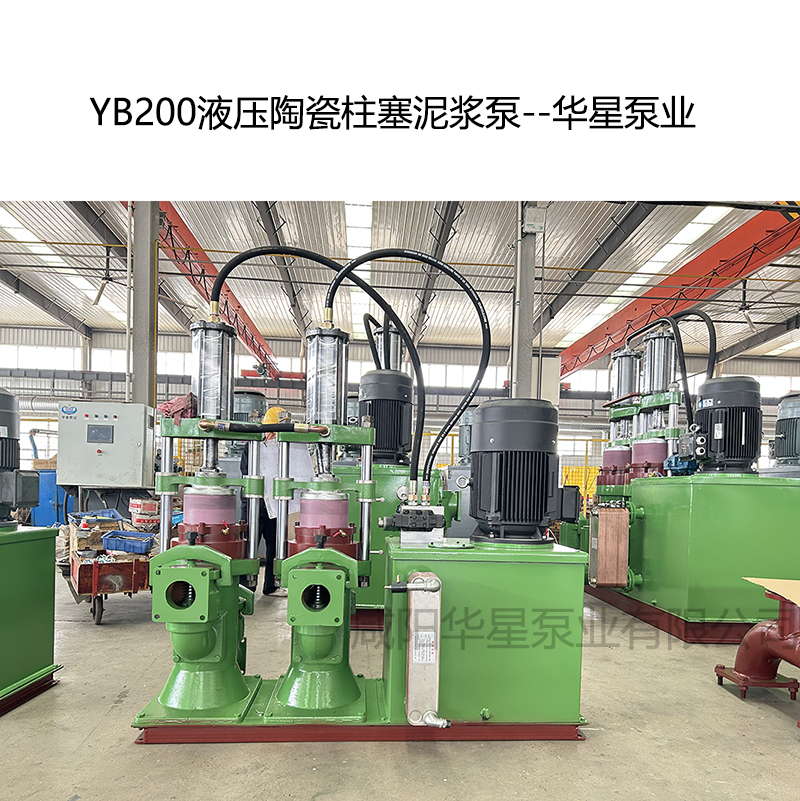

　　Company Background: Xianyang Huaxing Pump Industry Co., Ltd. Xianyang Huaxing Pump Industry Co., Ltd. is located in Qinhan New City, Xixian New Area. With more than 20 years of development history, it has strong mechanical manufacturing and scientific research and development capabilities. In 1992, the company developed and produced the first YB200 hydraulic plunger mud pump in China, which has a high reputation and influence in the industry.

　　Product features: Xianyang Huaxing Pump Industry Co., Ltd. is efficient and energy-saving: Ceramic plunger pumps have stable flow when transporting liquids, without overflow, pulsation, or other phenomena, ensuring continuous and stable operation. Variable displacement pumps have a constant flow rate in the low-pressure range. After the pressure rises to the set value, the flow rate decreases with the increase of pressure, and the motor power decreases accordingly. Compared with quantitative pumps, it saves energy by nearly 40% -50%.

　　Good pressure performance: With high discharge pressure, it can maintain a high discharge pressure even at low flow rates. The pressure of the atmospheric pump can reach 2.5Mpa, and the rated pressure is 2.0Mpa; The high-pressure pump can reach a pressure of 4.0Mpa and a rated pressure of 3.5Mpa, with small pressure fluctuations and a wide range of pressure regulation.

　　Corrosion and Wear Resistance: Key components such as ceramic plungers are fired and finely ground using alumina ceramics, with a hardness of HLC8.5 or higher and a surface roughness of 0.4um. They have strong wear and corrosion resistance, a long service life of up to 15 years, and can effectively reduce wear and maintenance costs.

　　Strong conveying capacity: capable of conveying high concentration suspended slurry, able to tolerate materials containing sand and solid particles, solid particles smaller than 2mm and small proportion of large particles can pass through, with a self-priming capacity of 4-8 meters.

　　Product series and models: Xianyang Huaxing Pump Industry Co., Ltd. mainly has YB series hydraulic mud plunger pumps, YBH series energy-saving pumps for filter presses, etc. The YBH series includes models such as YBH200-19, YBH300-40, YBH300-60, YBH400-120, with flow rates ranging from 19 cubic meters/hour to 120 cubic meters/hour, pressure ranges mostly from 0-2MPa or 0-1.5MPa, and motor power ranging from 7.5KW to 30KW.

　　Application Field Xianyang Huaxing Pump Industry Co., Ltd. is widely used in chemical industry, metallurgy, petroleum, printing and dyeing, ceramics, food, pharmacy, building materials, environmental protection, coal, metal and non-metallic minerals and other industries. It can be used for spray drying of ceramic slurry, high-pressure spray combustion of coal water slurry, clean (dirty) water, long-distance transportation of various suspended liquids, slurries, and sand containing liquids, as well as feeding of filter presses.
