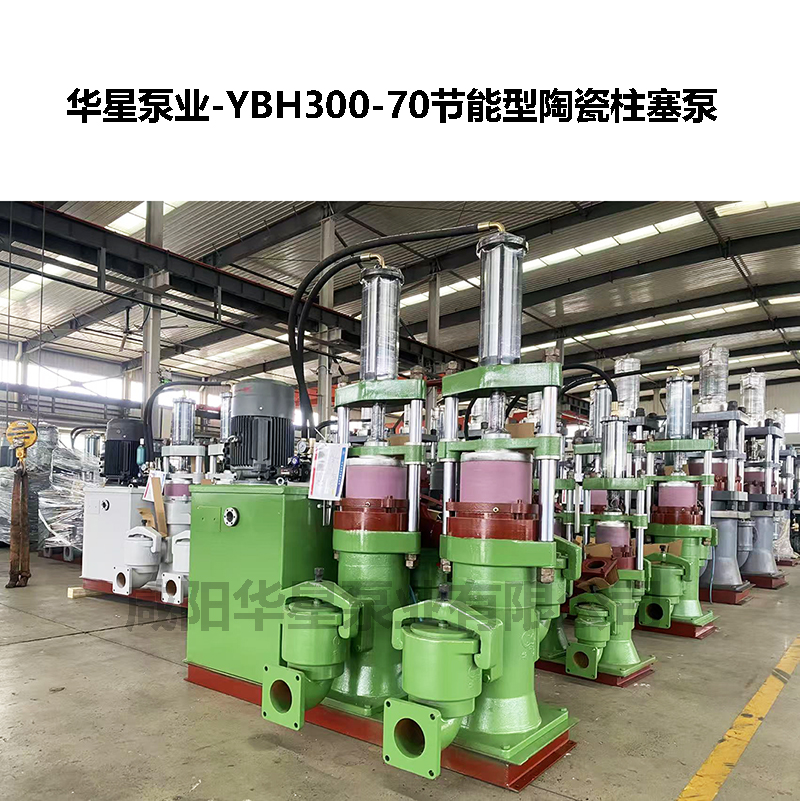

YB mud pump usually refers to YB series hydraulic ceramic plunger mud pump, developed and produced by Xianyang Huaxing Pump Industry Co., Ltd. It is a high-performance positive displacement pump.

　　Here is a detailed introduction:

　　Working principle: The motor drives the gear oil pump to convert low-pressure oil into high-pressure oil. The high-pressure oil alternately enters two hydraulic cylinders through the reversing valve, and drives the piston to drive the ceramic plunger to perform reciprocating motion, allowing the slurry to complete the suction and discharge actions through the inlet and outlet valves, achieving slurry transportation.

　　Characteristics

　　Structure and Performance: Equipped with hydraulic drive, it has a simple structure, smooth operation, high reliability for continuous operation, and easy maintenance. High working pressure, the pressure of the atmospheric pump can reach 2.5Mpa, and the rated pressure is 2.0Mpa; The pressure of the high-pressure pump can reach 4.0Mpa, with a rated pressure of 3.5Mpa, and the pressure fluctuation is small, the pressure regulation range is large, and the noise is low.

　　Conveying capacity: It can transport high concentration suspended slurry and can withstand materials containing sand and solid particles. Large particles with solid particle size less than 2mm and a small proportion can pass through.

　　Energy saving effect: Variable displacement pumps have a constant flow rate in the low-pressure range. After the pressure rises to the set value, the flow rate decreases with the increase of pressure, and the motor power decreases accordingly. Compared with quantitative pumps, they save nearly 40% -50% energy.

　　Mud material quality: When used for slurry supply in a pressure filter, compared with a diaphragm pump, the resulting mud material has higher quality, shorter pressure filtration time, and a 30% reduction in electricity consumption.

　　Product specifications: Conventional pumps currently have more than ten specifications in nine series including YB85, YB120, YB140, YB200, YB250, YB300, YB350, YB400, YB500, etc. The flow rate can range from 1.5m ³/h to 200m ³/h.

　　Application field: It is widely used in chemical industry, metallurgy, petroleum, printing and dyeing, ceramics, food, pharmacy, building materials, environmental protection, coal, metal and non-metallic minerals and other industries, and can be used for ceramic slurry spray drying, coal water slurry high-pressure spray combustion, long-distance transportation of various suspended liquids, slurries, sand containing liquids, filter press feeding, etc.
