Kaolin plunger pump usually refers to a ceramic plunger pump suitable for transporting and processing kaolin, with characteristics such as wear resistance and high-pressure transportation. Here is the relevant introduction:

　　Characteristics:

　　Wear resistance: The plunger is made of alumina ceramic fired, with high hardness, low surface roughness, and no shear motion with the conveyed material, suitable for conveying kaolin containing solid particles.

　　Strong self-priming ability: Adopting a plunger type vacuum pumping method, the self-priming ability is generally between 4-8 meters, and the specific suction range is determined by the specific gravity of the material.

　　Pressure adjustable: The working pressure can be adjusted arbitrarily within a certain range, and the adjusted pressure will not change due to changes in the output flow rate of the pump. It can maintain a constant pressure and meet the pressure requirements of different links such as kaolin transportation and pressure filtration.

　　Automatic flow adjustment: Some kaolin plunger pumps can automatically adjust the flow rate according to the set pressure. During the kaolin filtration process, as the filtration density increases and the pressure increases, the flow rate automatically decreases, achieving energy-saving operation.

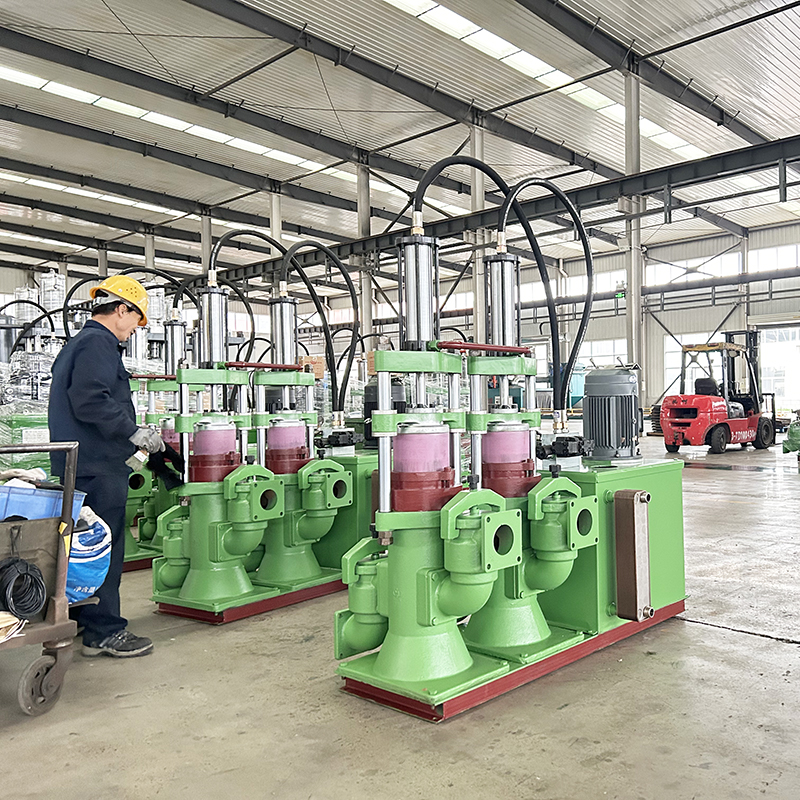

　　Model and parameters: Taking Xianyang Huaxing Pump Industry's products as an example, there are multiple models of YBH series ceramic plunger pumps suitable for transporting kaolin. For example, YBH400-80 hydraulic ceramic plunger mud pump has a flow rate of 80m ³/h, a working pressure of 1.8MPa, and a motor power of 22KW; YBH400-120 hydraulic ceramic plunger mud pump has a flow rate of 120m ³/h, a working pressure of 1.2MPa, and a motor power of 30KW.

　　Application scenario: In the kaolin industry, hydraulic ceramic plunger pumps are mainly used for kaolin grinding, filtration, drying and other processes. For example, during the grinding process, strong pressure and precise flow control can be provided to make the grinding more uniform and efficient; In the filtration process, impurities can be efficiently filtered to improve product quality.
