YBH400-120 is an energy-saving ceramic plunger pump specifically designed for filter presses produced by Xianyang Huaxing Pump Industry Co., Ltd

　　Here is a detailed introduction:

　　Main parameters

　　Flow rate: 120m ³/h

　　Pressure range: 0-2MPa

　　Rated pressure: 0-2MPa (0-20 kg)

　　Stroke: 350mm

　　Motor power: 30KW

　　Dimensions: 2.48 × 2.5 × 2.6 meters

　　Diameter of suction and discharge slurry pipeline: φ 180/φ 159

　　Weight: 3.8 tons

　　Fuel tank capacity: 560L

　　Product Features

　　Wear resistance: The plunger is made of alumina ceramic fired, with a hardness of HLC8.5 or above and a surface roughness of 0.4um, suitable for conveying materials containing sand and solid particles.

　　Strong self-priming ability: Adopting a plunger type vacuum pumping method, the self-priming ability is 4-8 meters (the material density determines the suction range change).

　　Adjustable constant pressure automatic variable: The working pressure can be adjusted freely within the range of 0-20 kilograms, and the adjusted pressure will not change due to changes in the pump's output flow rate. Even if the outlet is closed, the pressure remains at the set value.

　　Application Fields

　　This pump is mainly used for feeding filter presses and is suitable for solid-liquid separation processes in industries such as pharmaceuticals, chemicals, municipal wastewater treatment, and mining. It can transport materials with high concentration, high viscosity, and solid particles, such as sludge from pharmaceutical wastewater treatment and sludge from mining wastewater treatment.

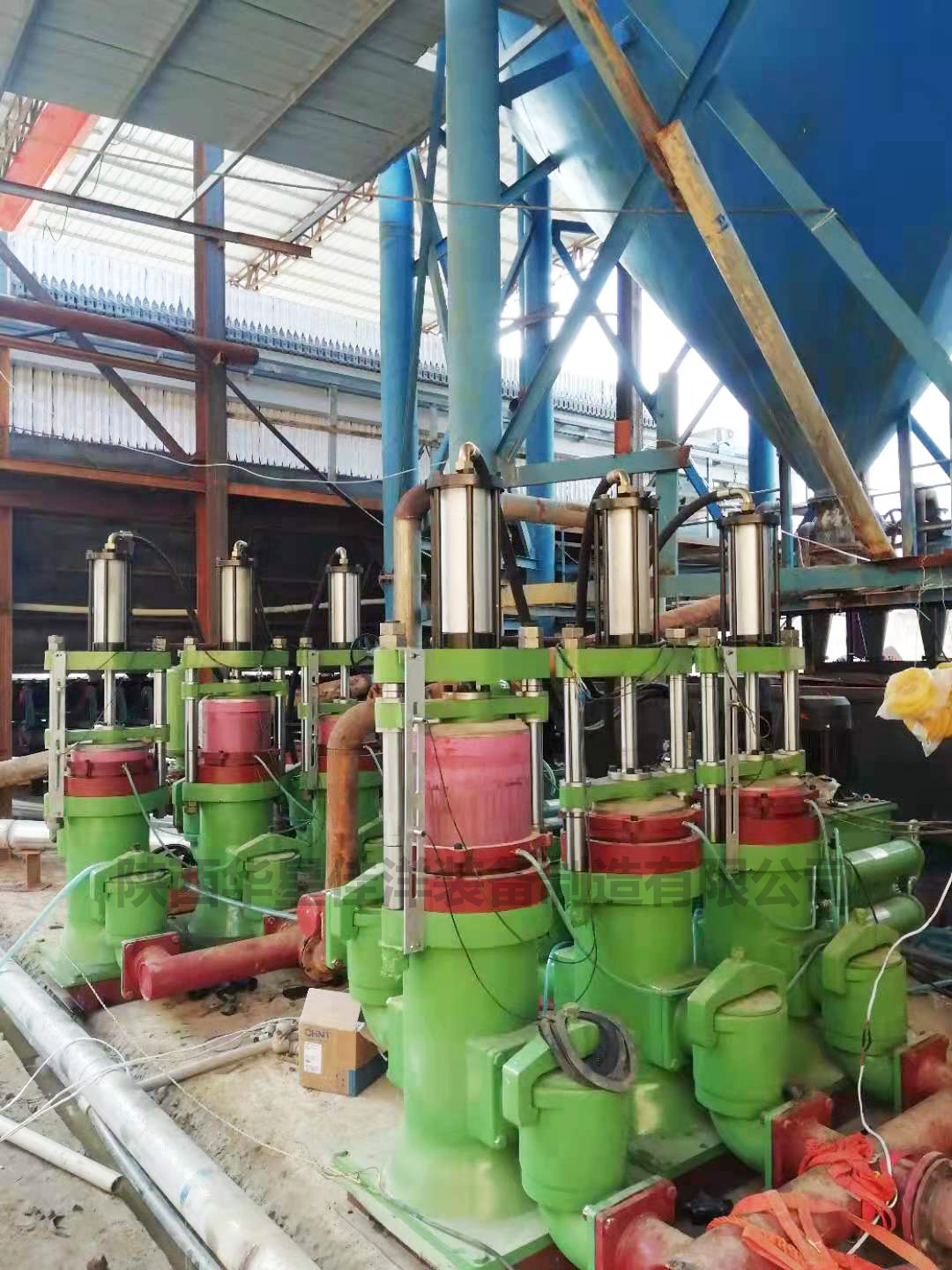

site of use
